Mainly used for fine grinding and polishing of small spheres of brittle materials such as optical glass and high precision abrasive tools.

Chat Online Get Free Solution

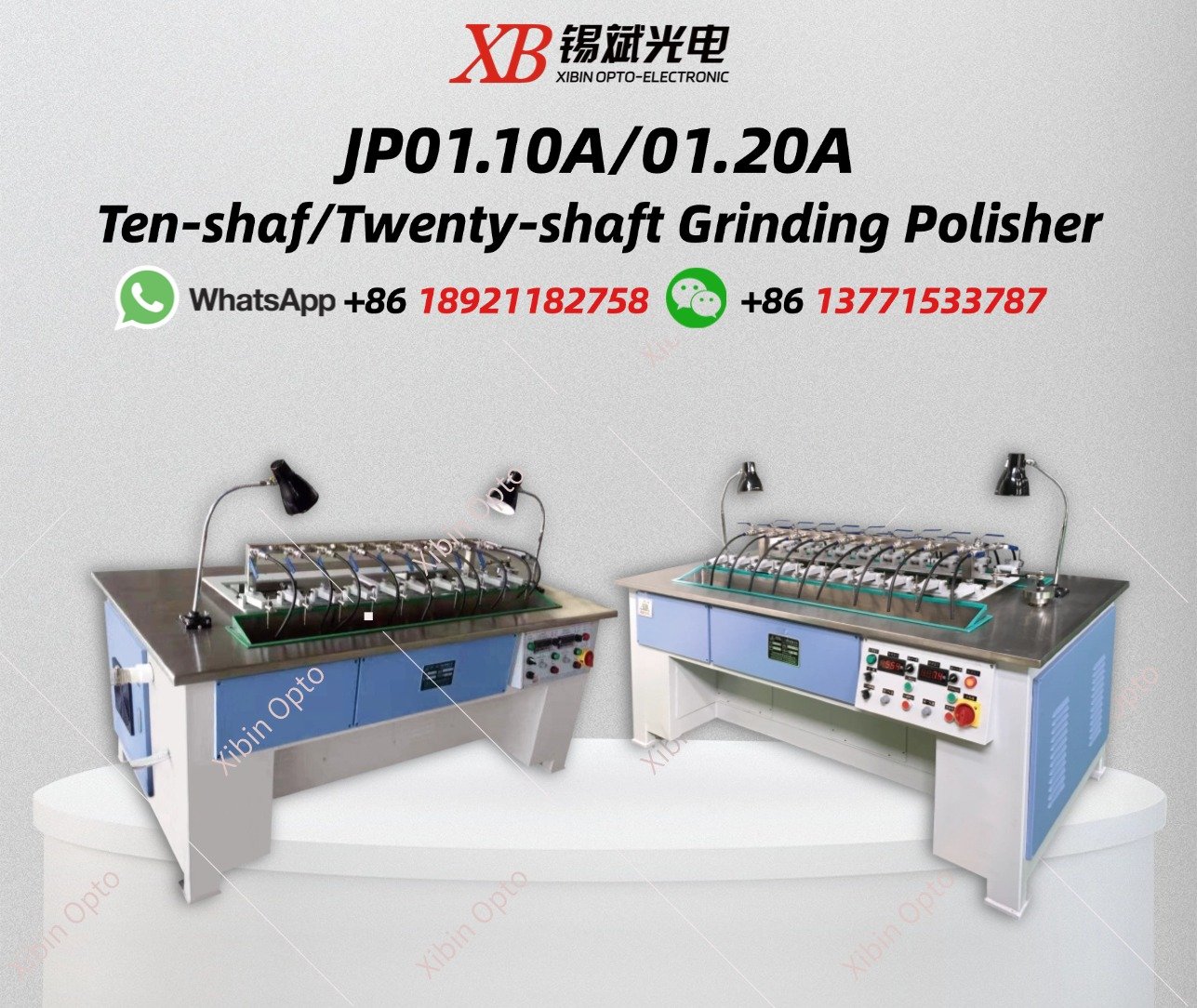

JP01.10A/01.20A Ten-shaf/Twenty-shaft Grinding Polisher

Mainly used for fine grinding and polishing of small spheres of brittle materials such as optical glass and high precision abrasive tools.

Product Model	JP01.10A	JP01.20A
Machining dia	≤Ф10mm	≤Ф10mm
Precision of main shaft	≤0.02mm	≤0.02mm
Main shaft number	Ten shafts	Twenty shafts
Swing amplitude	Swing 0~30mm	Swing 0~30mm
Speed of main shaft	0,300~ 1500RPM	0,300~ 1500RPM
Main shaft\Joint taper	1:15	1:15
Swing set time	0,30~150 times/min	0,30~150 times/min
Total power	2kW/380V	2kW/380V
Size	1900 x 900 x 950(mm)	1900 x 900 x 950(mm)
Weight	About 650kg	About 700kg
All machine can be designed and manufactured as required.
