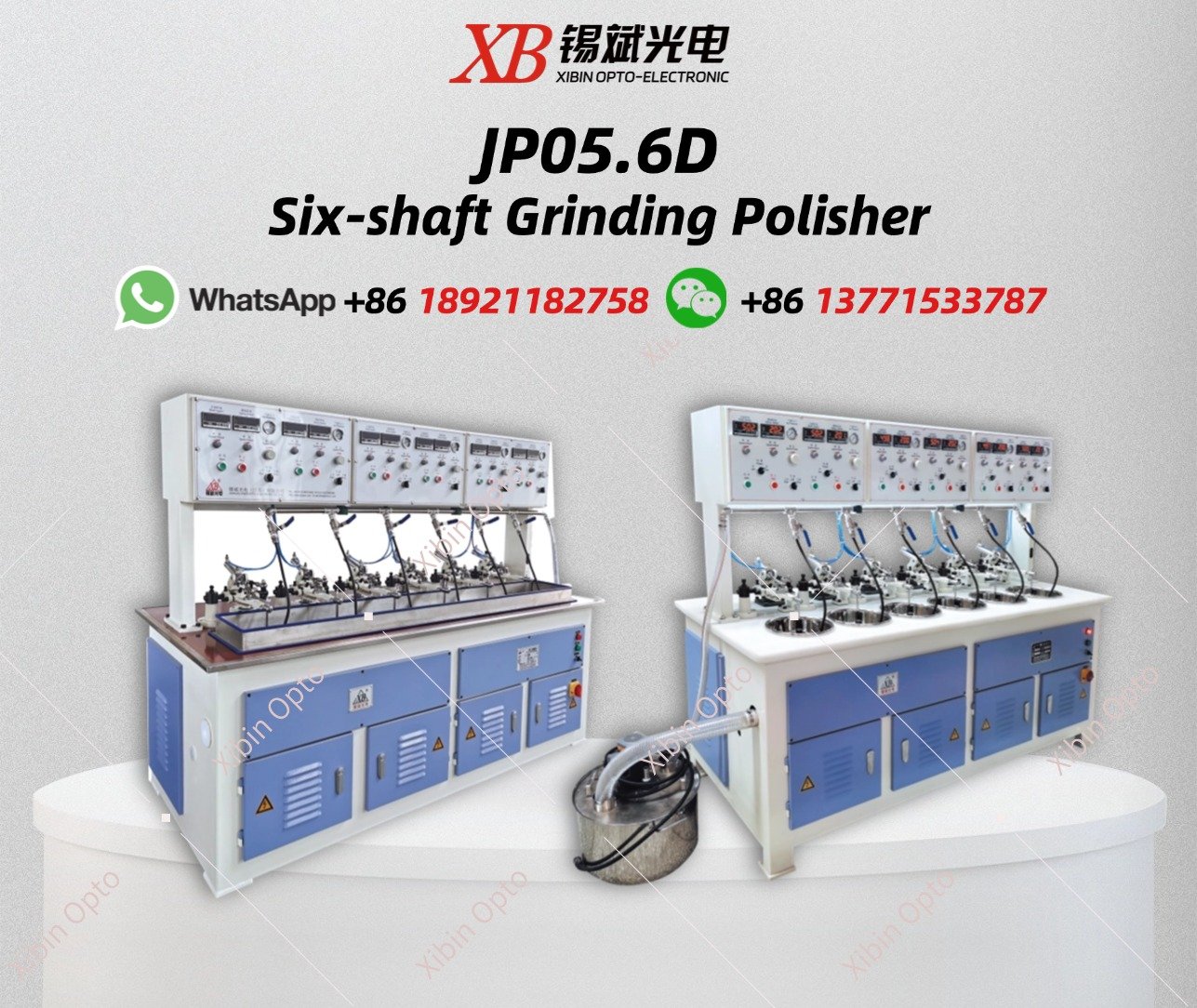

JP05.6D Six-shaft Grinding Polisher
JP05.6D Six-shaft Grinding Polisher

JP05.6D Six-shaft Grinding Polisher

Mainly used for grinding and polishing surfaces, spheres and planes of britle materials such as optical glass, quartz glass.crystal materials, electronic components, ete. As wellas grinding and polishing of various high precision planar and concave spherical molds. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

JP05.6D Six-shaft Grinding Polisher

Mainly used for grinding and polishing surfaces, spheres and planes of britle materials such as optical glass, quartz glass.crystal materials, electronic components, ete. As wellas grinding and polishing of various high precision planar and concave spherical molds. (Optional touch screen and knob for operation)

Main technical specification

Product Model

JP05.6D

Machining dia

≤Ф50mm

Tank dia

Ф225mm

Precision of main shaft

≤0.02mm

Main shaft numberSix shafts
Swing amplitude

Swing 0~60mm

Speed of main shaft0,100~ 500RPM
Main shaft conicityExternal cone 1:8
Swing set time0,40 ~200 times/min
Total power2.6kW/380V
Size2020x850x1650(mm)
WeightAbout 1000kg

All machine can be designed   and manufactured as required.
