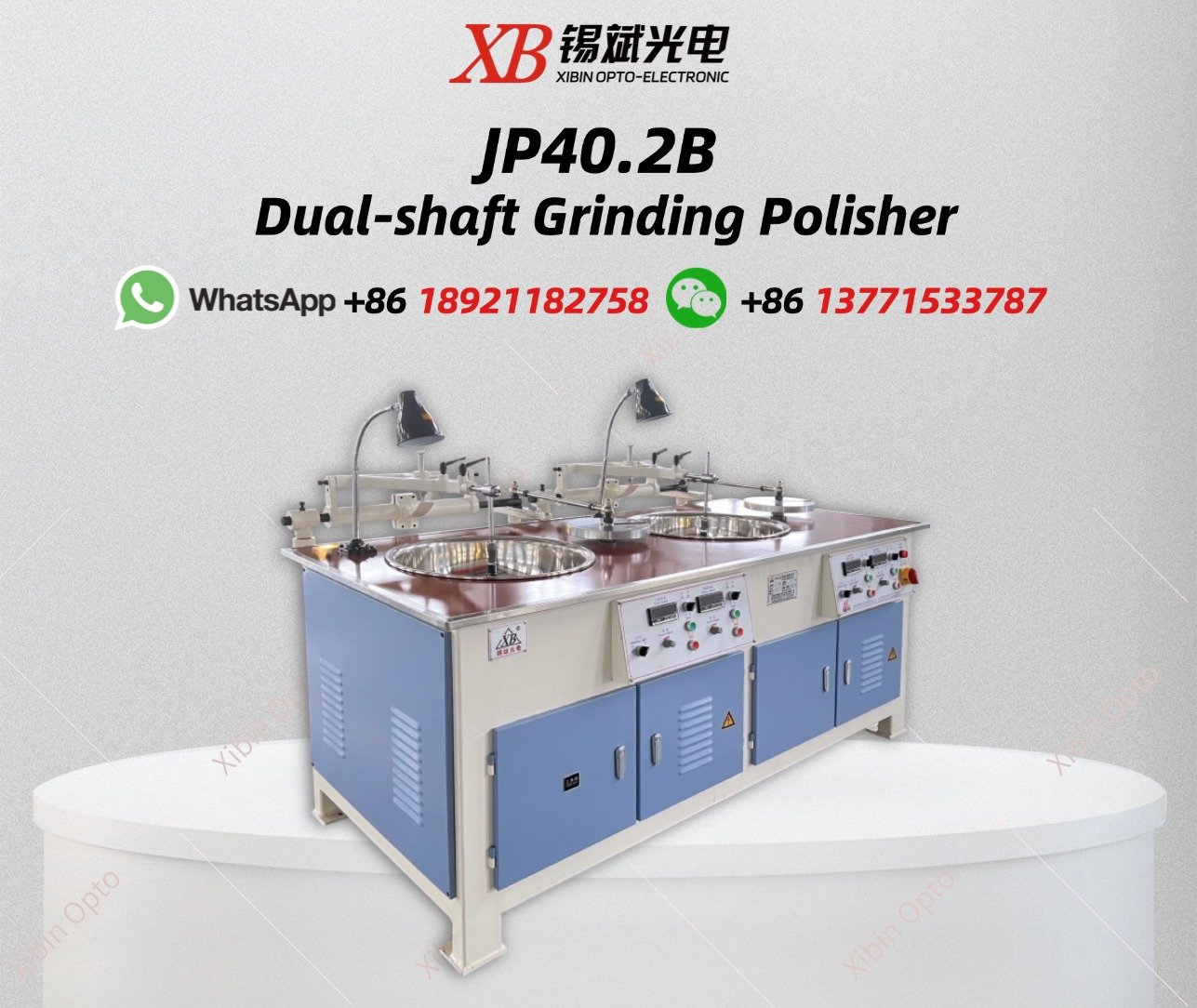

JP40.2B Dual-shaft Grinding Polisher
JP40.2B Dual-shaft Grinding Polisher

JP40.2B Dual-shaft Grinding Polisher

Mainly used for grinding and polishing surfaces, spheres and planes of brittle materials such as optical glass, quartz glass,crystal materials, electronic components, etc. As wellas grinding and polishing of various high precision planar and concave spherical molds. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

JP40.2B Dual-shaft Grinding Polisher

Mainly used for grinding and polishing surfaces, spheres and planes of brittle materials such as optical glass, quartz glass,crystal materials, electronic components, etc. As wellas grinding and polishing of various high precision planar and concave spherical molds. (Optional touch screen and knob for operation)

Main technical specification

Product Model

JP40.2B

Machining dia

Ф30-Ф420mm

Tank dia

Ф560mm

Precision of main shaft

≤0.02mm

Main shaft numberTwo shafts
Swing amplitude

Swing 0~200mm

Speed of main shaft0,14~ 70RPM 0,14~70RPM
Swing set time0,14 ~70 times/min
Amount of main shaftTwo shafts,Thread M27x3or conicity 1:8
Curvature radiusR≥30mm
Total power1.8kW/380V
Size2000 x 1200 x 1150(mm)
WeightAbout 550kg

All machine can be designed   and manufactured as required.
