Belongs to high precision optical, electronic. piston ring. mechanical parts and other precision plane components grinding
equipment.
The cast iron plate adopts three processing stations. Three workpiece rings and a correction ring are optional. The correction ring is used to correct the flatness of the worktable

Chat Online Get Free Solution

Product details

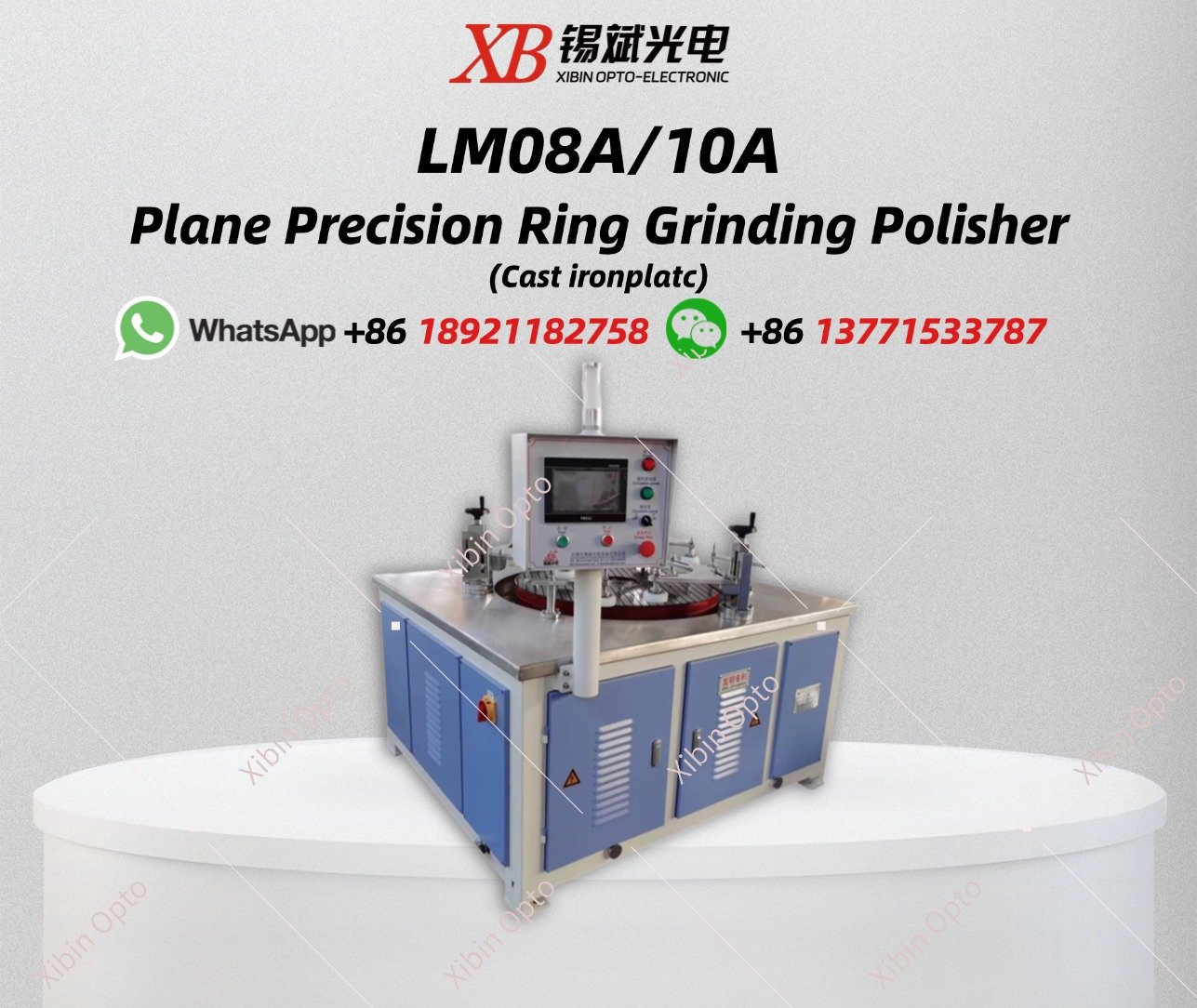

LM08A/10A Plane Precision Ring Grinding Polisher (Cast ironplatc)

Belongs to high precision optical, electronic. piston ring. mechanical parts and other precision plane components grinding equipment.

The cast iron plate adopts three processing stations. Three workpiece rings and a correction ring are optional. The correction ring is used to correct the flatness of the worktable

Main technical specification

Product Model	LM08A	LMI0A
Millstone size(granite)	Ф800mm	Ф1000 mm
Workpiece ring size	Ф330xФ280x80	Ф450xФ390x100
Jumpiness of millstone	≤0.05mm	≤0.06mm
Jumpiness of single point	≤0.01mm	≤0.01mm
Correcting ring size	Ф450xФ350x100	Ф550xФ400x100
Millstone rotating speed	0,10~50RPM	0,8~40RPM
Processing scope	≤Ф280mm	≤Ф390mm
Total power	4.5kW/380V	4.6kW/380V
Weight	About1200kg	About1700kg
Size	1300 x 1400x1320(mm)	1450 x 1500 x 1320(mm)
All machine can be designed and manufactured as required.
