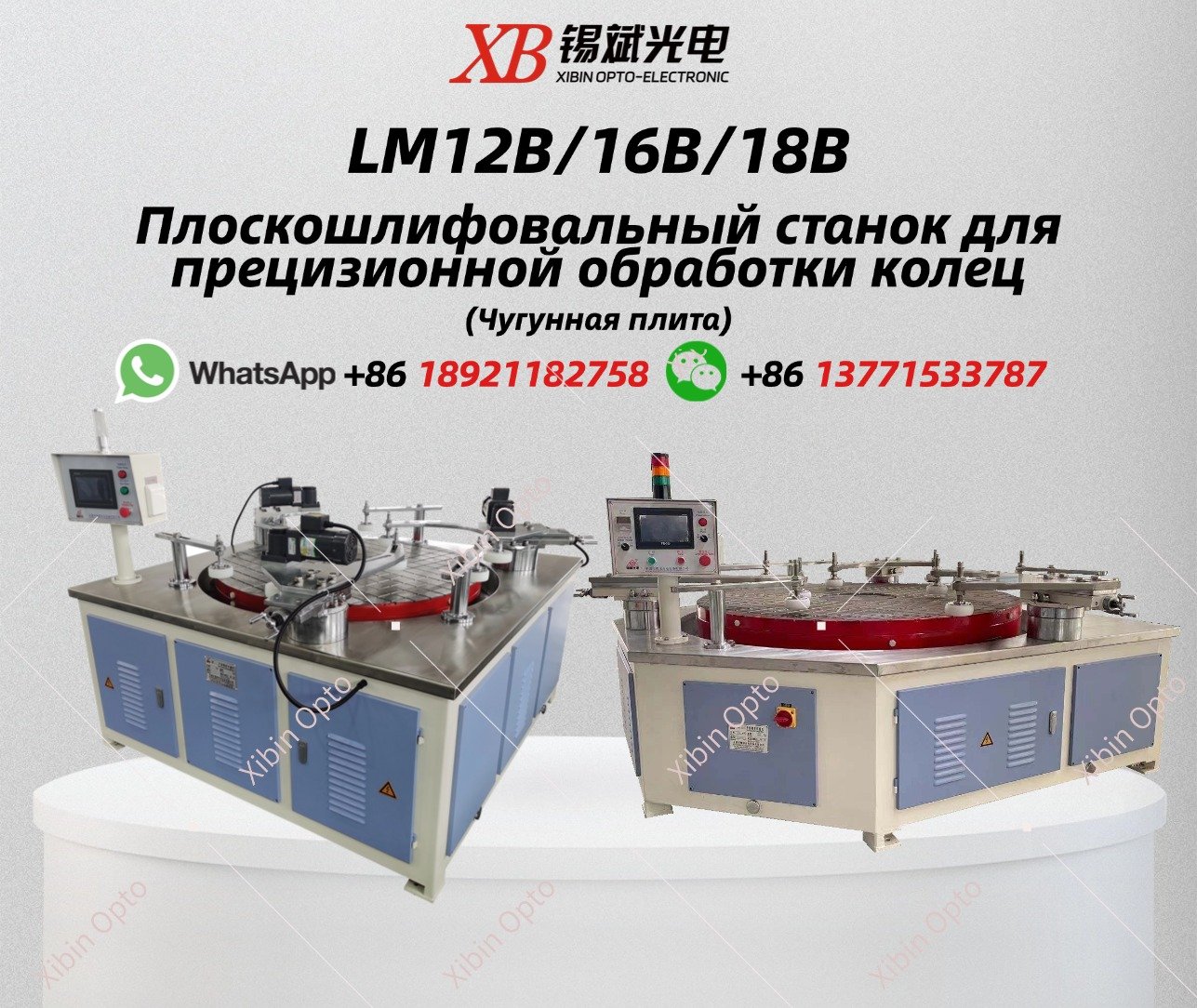

LM12B/16B/18B Plane Precision Ring Grinding Polisher (Cast ironplatc)

Belongs to high precision optical, clectronic, piston ring, mechanical parts and other precision plane components grinding
cquipment.
The cast iron plate adopts three processing stations. Three workpiece rings and a correction ring are optional. The correction
ring is used to correct the flatness of the worktable.

Chat Online Get Free Solution

Product details

Belongs to high precision optical, clectronic, piston ring, mechanical parts and other precision plane components grinding

cquipment.

The cast iron plate adopts three processing stations. Three workpiece rings and a correction ring are optional. The correction

ring is used to correct the flatness of the worktable.

Main technical specification

Product Model	LM12B	LP18D	LP20D
Millstone size (granite)	Ф1200 mm	Ф1800 mm	Ф2000 mm
Workpiecering size	Ф510xФ450x100	Ф700xФ600x60	Ф800xФ650x70
Jumpiness of millstone	≤0.10mm	≤0.06mm	≤0.08mm
Jumpiness of single point	≤0.02mm	≤0.01mm	0≤0.1mm
Location number	3pcs	3pcs	3pcs
Millstone rotating speed	0,5~20RPM	0,4~ 15RPM	0,3~ 15RPM
Processing scope	≤Ф500mm	≤Ф600mm	≤Ф650mm
Total power	6.4kW/380V	7.2kW/380V	16.5kW/380V
Weight	About 3500kg	About 4500kg	About6000kg
Size	2160 x 2040 x 1400(mm)	2500 x 2200 x 1480(mm)	2900 x 2600 x 1480(mm)
All machine can be designed and manufactured as required.
