Product details

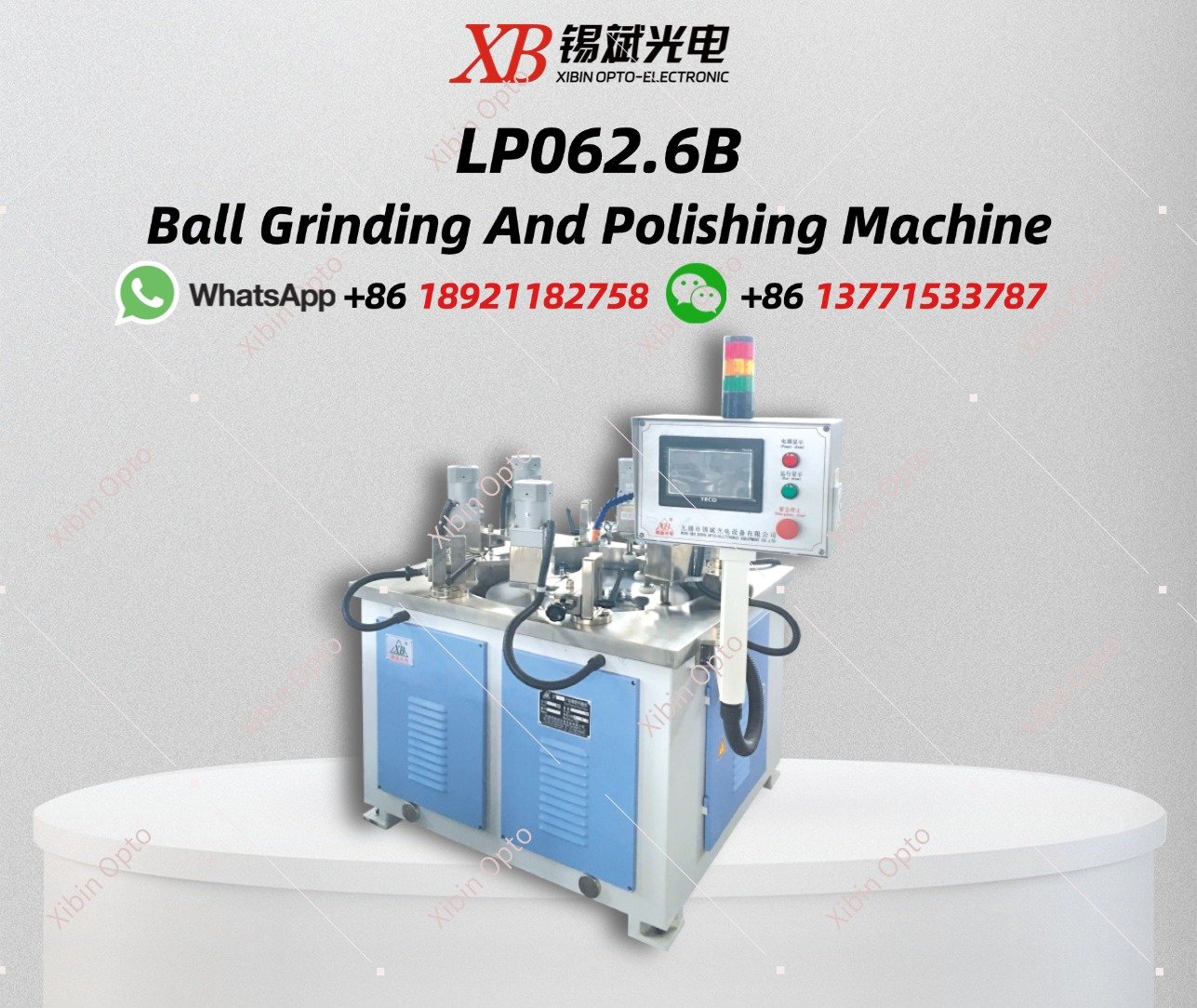

LP062.6B Ball Grinding And Polishing Machine

Mainly used for grinding and polishing high precision optical glass, quartz wafer, ceramics, silicon wafer, sapphire and other planar elements

Therc are two kinds of grinding disks: one is granite millstone, which is suitable for grinding and polishing becausc of itsminimal deformation under different ambient temperature changes. The other is cast iron milstone, which is suitable for fine grinding, six processing stations.

Main technical specification

Product Model	LP062.6B
Millstone size	Ф620 mm
Workpiece ring size	Ф170×Ф145×100
Jumpiness of single point Jumpiness of millstone	≤0.0Imm ≤0.05mm
Location number	6pcs
Millstone rotating speed	0,20 - 90RPM
Processing scope	≤Ф145mm
Total power	3kW/380V
Weight	About800kg
Size	1060x1120x1400(mm)
All machine can be designed and manufactured as required.
