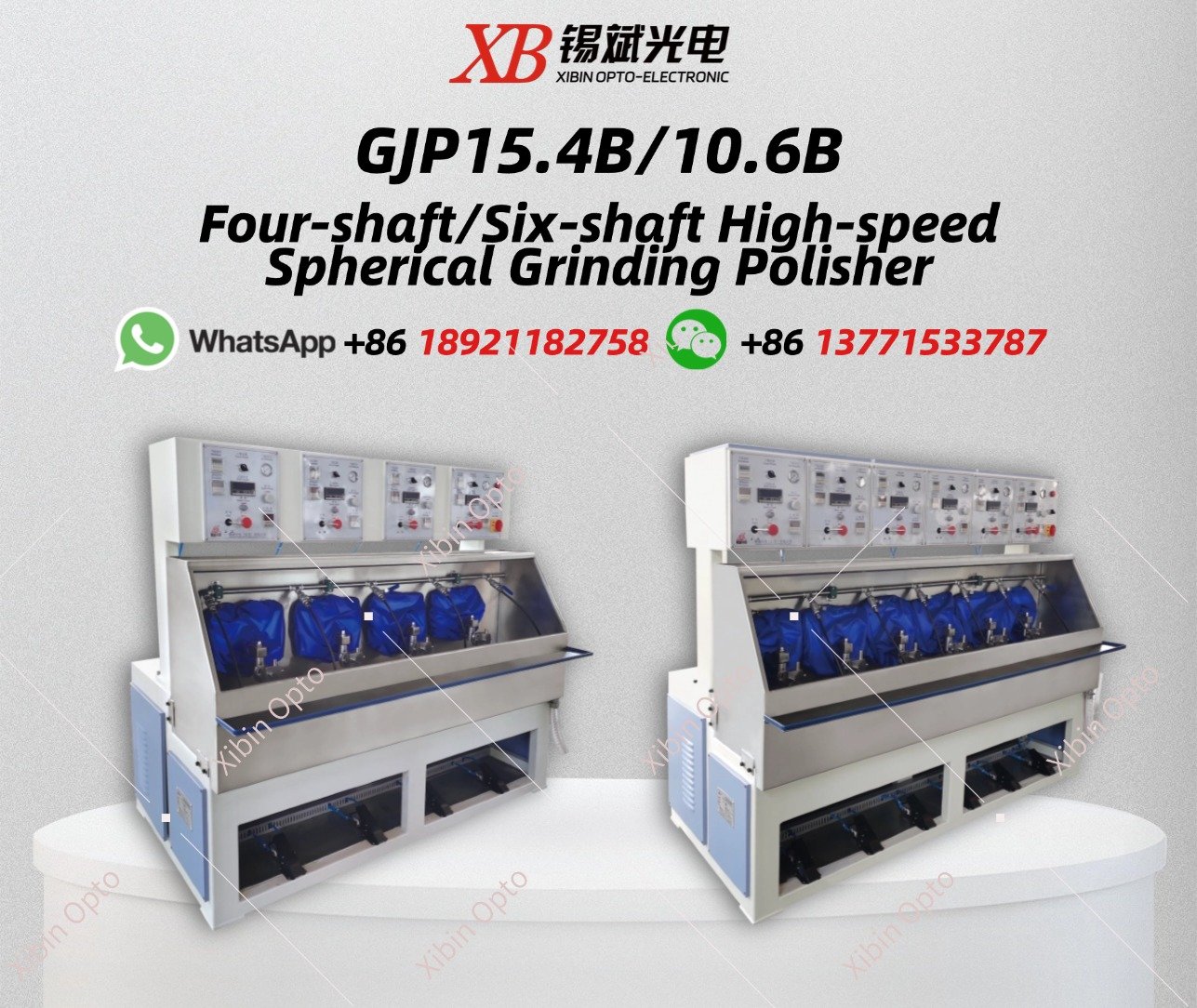

GJP15.4B/10.6B Four-shaft/Six-shaft High-speed Spherical Grinding Polisher (Main shaft,pendulum shaft separate variable speed.)
GJP15.4B/10.6B Four-shaft/Six-shaft High-speed Spherical Grinding Polisher (Main shaft,pendulum shaft separate variable speed.)

GJP15.4B/10.6B Four-shaft/Six-shaft High-speed Spherical Grinding Polisher (Main shaft,pendulum shaft separate variable speed.)

Mainly used for the grinding and polishing of plane, spherical surface of optical glass, quartz glass, crystal materials,electronic components etc. And a variety of high-precision plane, concave and convex spherical mold grinding and polishing (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GJP15.4B/10.6B  Four-shaft/Six-shaft High-speed Spherical Grinding Polisher (Main shaft,pendulum shaft separate variable speed.)

Mainly used for the grinding and polishing of plane, spherical surface of optical glass, quartz glass, crystal materials,electronic components etc. And a variety of high-precision plane, concave and convex spherical mold grinding and polishing (Optional touch screen and knob for operation)

Main technical specification

Product Model

GJP15.4B

GJP10.6B

Machining dia

Ф≤150mm

Ф≤100mm

Main shaft space

400mm

300mm
Precision of main shaft

≤0.02mm

≤0.02mm
Speed of main shaft0,280~1400RPM0,280~1400RPM
Amount of main shaft

Four shafts,Thread M22 x 2.5

(Positioning circleФ 24)

Six shafts,Thread M22 x 2.5

(Positioning circleФ 24)

Swing set time45times/min(fixed speed)45times/min(fixed speed)
Pneumatic pressure0.6MPa0.6MPa
Total power4.8kW/380V7.2kW/380V
Size1920x1120x1750(mm)2050x1120x1750(mm)
WeightAbout 1100kgAbout 1400kg

All machine can be designed   and manufactured as required.
