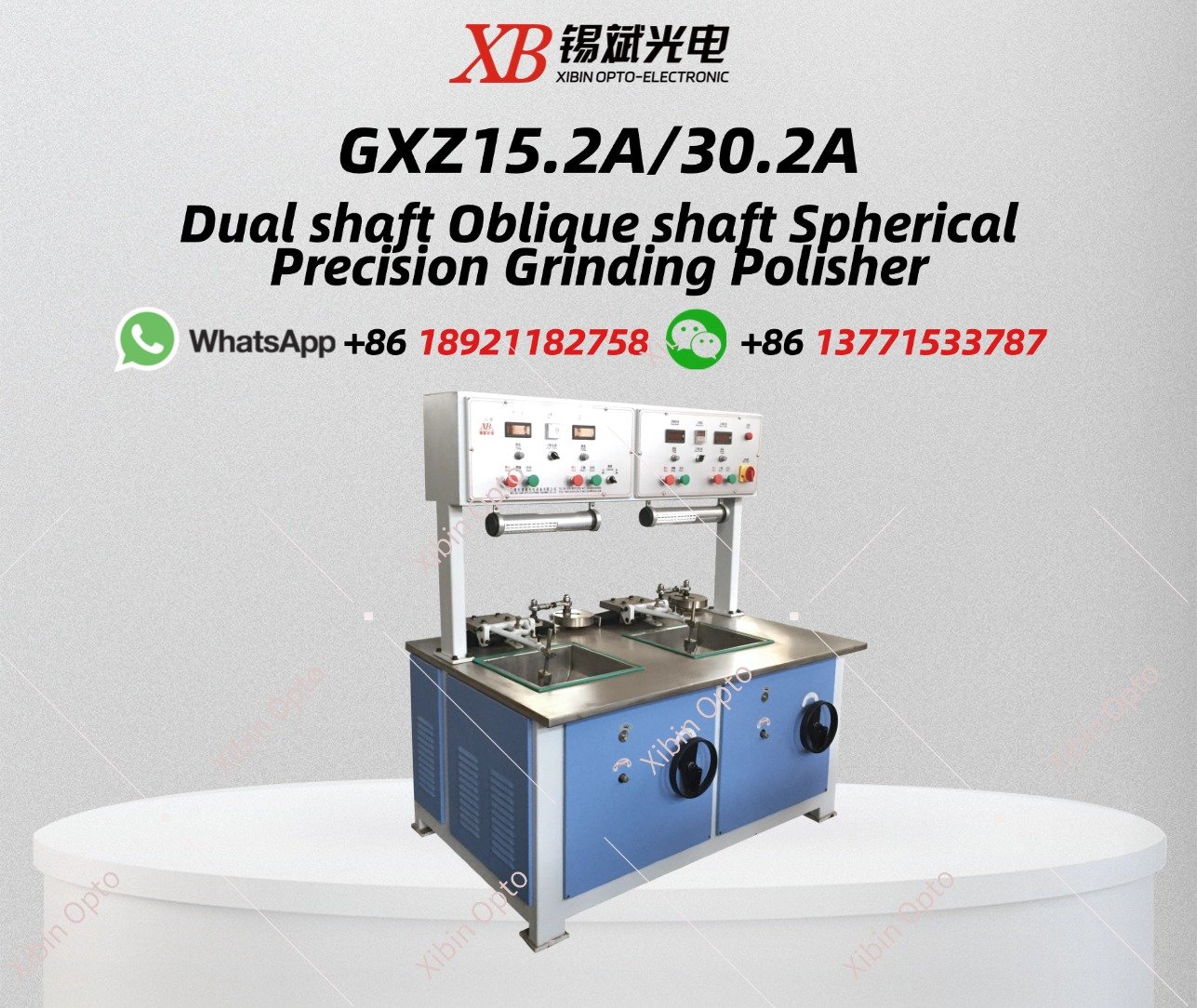

GXZ15.2A/30.2A Dual shaft Oblique shaft Spherical Precision Grinding Polisher
GXZ15.2A/30.2A Dual shaft Oblique shaft Spherical Precision Grinding Polisher

GXZ15.2A/30.2A Dual shaft Oblique shaft Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirrors, counter weight pressure, swing frame for linear reciprocatingmotion.Any inclination of the spindle 30degrees. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GXZ15.2A/30.2A Dual shaft Oblique shaft Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirrors, counter weight pressure, swing frame for linear reciprocatingmotion.Any inclination of the spindle 30degrees. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GJP15.4B

GJP10.6B

Machining dia

≤Ф150mm

≤Ф100mm

Main shaft space

400mm

300mm
Precision of main shaft

≤0.02mm

≤0.02mm
Speed of main shaft0,280~1400RPM0,280~1400RPM
Amount of main shaft

Four shafts,Thread M22 x 2.5

(Positioning circleФ24)

Six shafts,Thread M22 x 2.5

(Positioning circleФ24)

Swing set time45times/min(fixed speed)45times/min(fixed speed)
Pneumatic pressure0.6MPa0.6MPa
Total power4.8kW/380V7.2kW/380V
Size1920x1120x1750(mm)2050x1120x1750(mm)
WeightAbout 1100kgAbout 1400kg

All machine can be designed   and manufactured as required.
