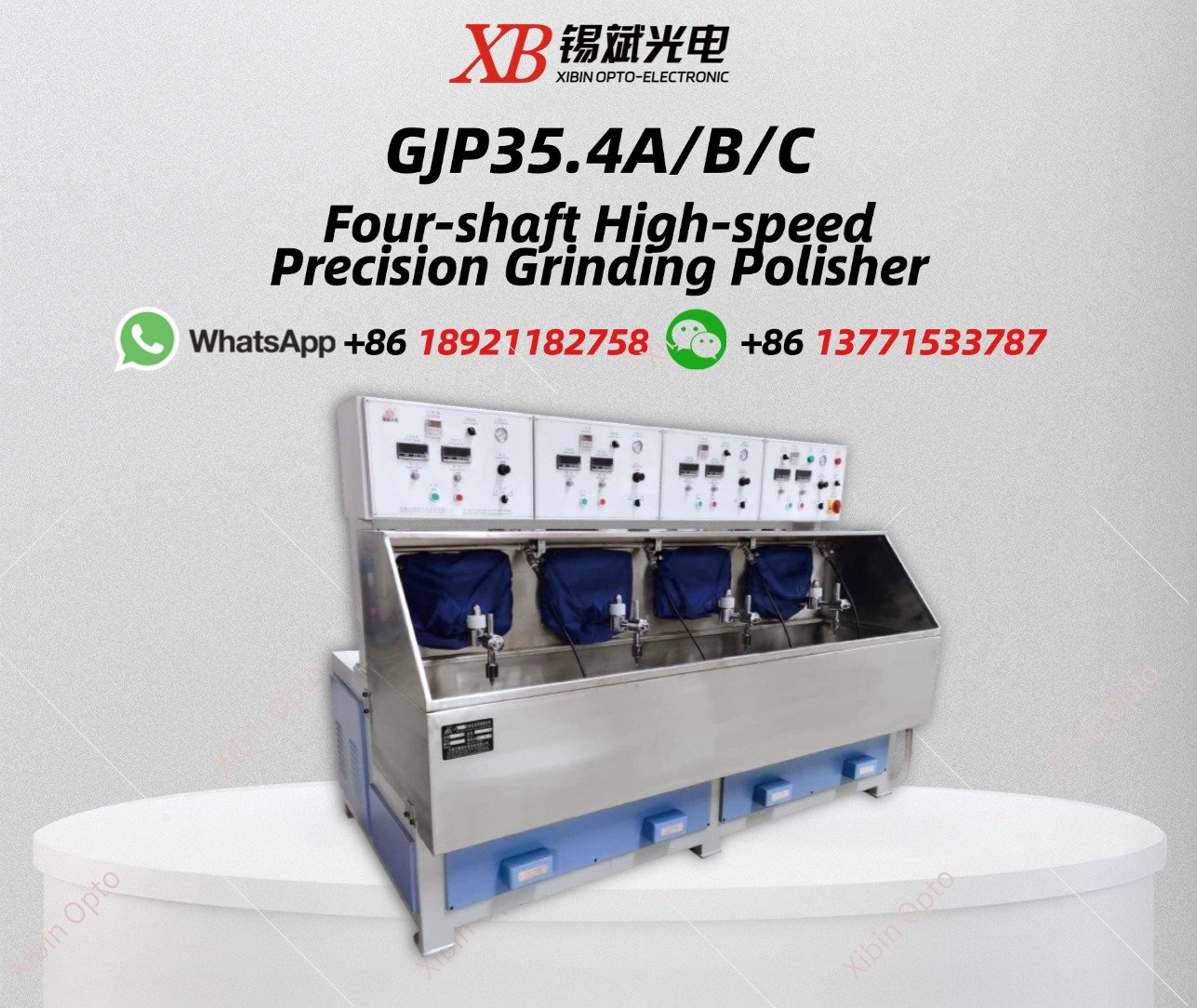

GJP35.4A/B/C Four-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed）
GJP35.4A/B/C Four-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed）

GJP35.4A/B/C Four-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed）

Mainly used for grinding and polishing of plane, spherical surface of optical glass, quartz, crystal, electronic components etc.
Flat pendulum motion, spindle, pendulum shaft, rotation speed, pressure, time can be separately adjusted according to the needs of processing parts.
Type A adopts the method of horizontal pendulum motion. Type B and type C adopt elliptical motion. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GJP35.4A/B/C Four-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed）

Mainly used for grinding and polishing of plane, spherical surface of optical glass, quartz, crystal, electronic components etc.

Flat pendulum motion, spindle, pendulum shaft, rotation speed, pressure, time can be separately adjusted according to the needs of processing parts.

Type A adopts the method of horizontal pendulum motion. Type B and type C adopt elliptical motion. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GJP35.4A/B/C

Machining dia

≤Ф350mm

Main shaft space

550mm

Precision of main shaft

≤0.02mm

Swing amplitude

Swing 0~140mm

Speed of main shaft0,70 ~ 350RPM
Amount of main shaftFour shafts,Thread M27 x3
Swing set time0,10 ~ 50times/min
Pneumatic pressure0.6MPa
Total power4.8kW/380V
Size2350 x 1250 x 1650(mm)
WeightAbout 1100kg

All machine can be designed   and manufactured as required.
