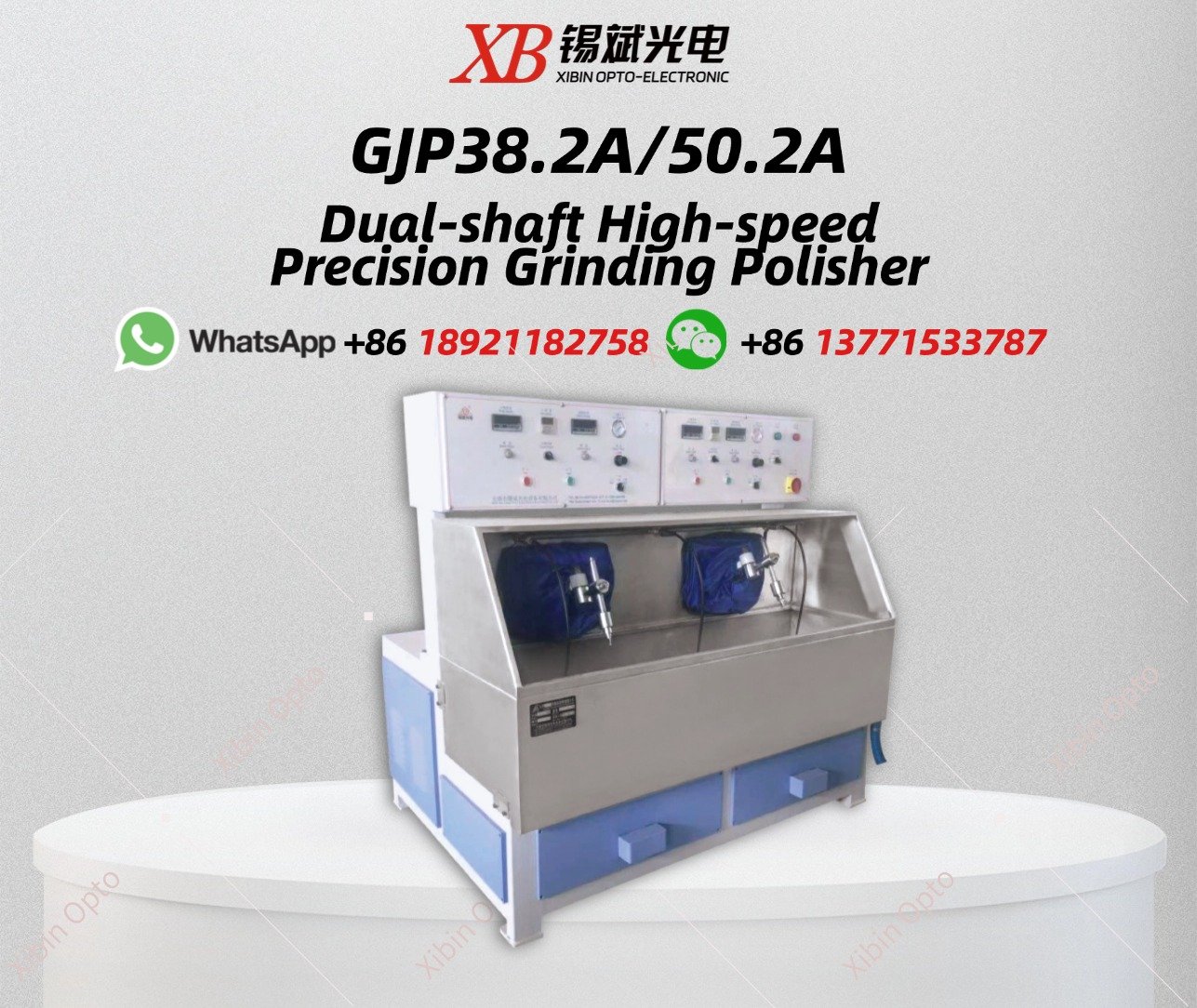

GJP38.2A/50.2A Dual-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed.)
GJP38.2A/50.2A Dual-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed.)

GJP38.2A/50.2A Dual-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed.)

Mainly used for grinding and polishing of plane, spherical surface of optical glass, quartz, crystal, electronic components etc.
Flat pendulum motion, spindle, pendulum shaft, rotation speed, pressure, time can be separately adjusted according to the needs of processing parts
Type A adopts the method of horizontal pendulum motion. Type B and type C adopt elliptical motion. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GJP38.2A/50.2A  Dual-shaft High-speed Precision Grinding Polisher (Main shaft, pendulum shaft separate variable speed.)

Mainly used for grinding and polishing of plane, spherical surface of optical glass, quartz, crystal, electronic components etc.

Flat pendulum motion, spindle, pendulum shaft, rotation speed, pressure, time can be separately adjusted according to the needs of processing parts

Type A adopts the method of horizontal pendulum motion. Type B and type C adopt elliptical motion. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GJP38.2A

GJP50.2A

Machining dia

≤Ф380mm

≤Ф500mm
Main shaft space

800mm

900mm
Precision of main shaft≤0.02mm≤0.02mm
Swing amplitude

Swing 0~140mm

Swing 0~200mm
Speed of main shaft0,70 ~ 350RPM0,30 ~ 150RPM
Amount of main shaftTwo shafts,ThreadM27 x3Two shafts,ThreadM48 x5
Swing set time0,10~50times/min0,10~50times/min
Pneumatic pressure0.6MPa0.6MPa
Total power4kW/380V4.8kW/380V
Size1720 x 1250 x 1650(mm)1900x1420x1650(mm)
WeightAbout 800kgAbout 900kg

All machine can be designed   and manufactured as required.
