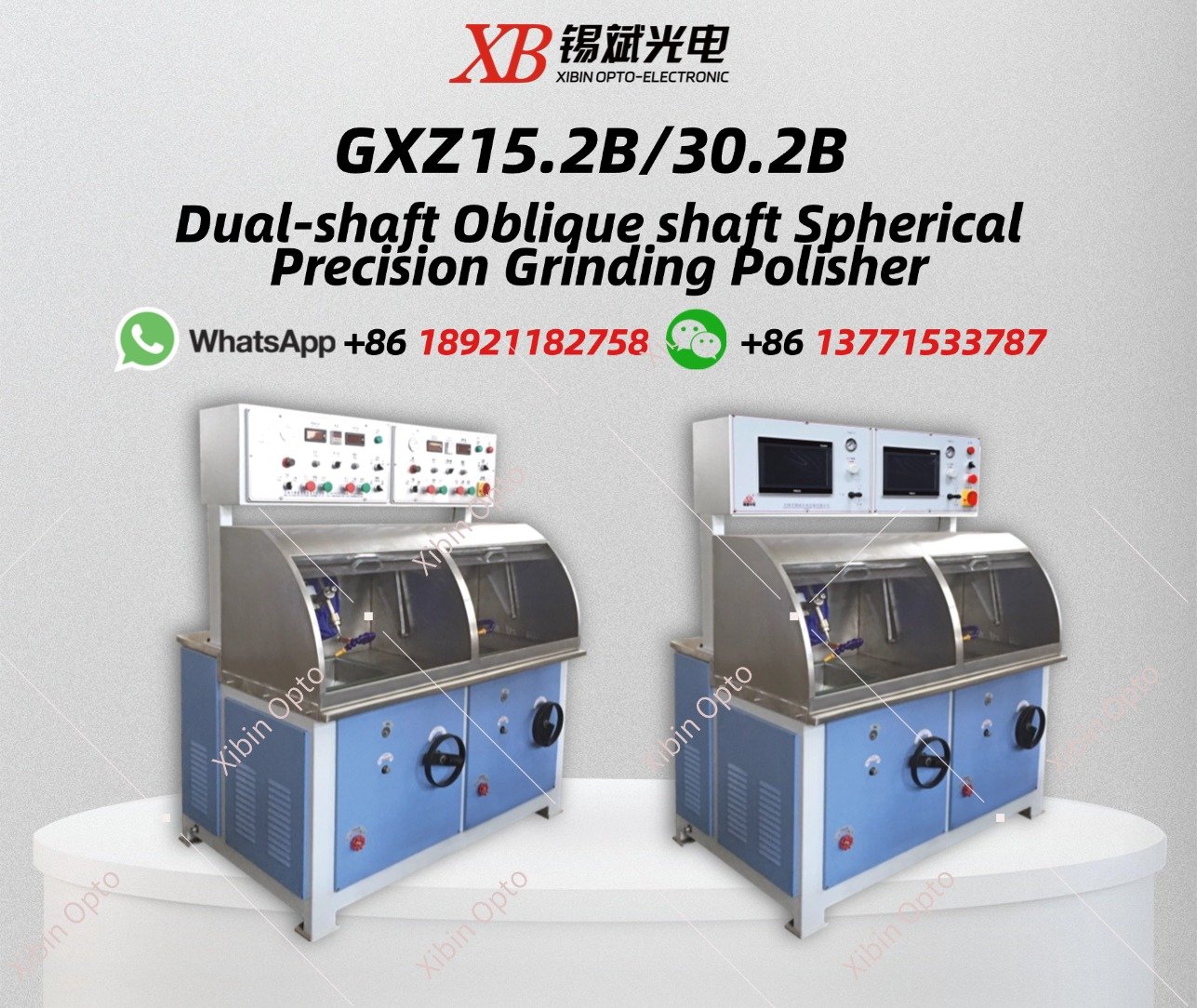

GXZ15.2B/30.2B Dual-shaft Oblique shaft Spherical Precision Grinding Polisher
GXZ15.2B/30.2B Dual-shaft Oblique shaft Spherical Precision Grinding Polisher

GXZ15.2B/30.2B Dual-shaft Oblique shaft Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirrors. The tripod is electronically controlled pneumatic device, swing frame for linear reciprocating motion. Internal and external injection system of spindle. Any inclination of the spindle 30° degrees. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

GXZ15.2B/30.2B Dual-shaft Oblique shaft Spherical Precision Grinding Polisher

It is used for grinding and polishing of spherical mirrors. The tripod is electronically controlled pneumatic device, swing frame for linear reciprocating motion. Internal and external injection system of spindle. Any inclination of the spindle 30° degrees. (Optional touch screen and knob for operation)

Main technical specification

Product Model

GXZ15.2B

GXZ30.2B

Machining dia

≤Ф150mm

≤Ф300mm

Tank size

370x 350mm

520x 540mm
Precision of main shaft

≤0.02mm

≤0.02mm
Main shaft numberTwo shaftsTwo shafts
Swing amplitude

Swing 0~120mm

Swing 0~140mm
Speed of main shaft0,100~ 500RPM0,100~ 500RPM
Screw thread of main shaftM27x3M27x3
Spindle tilt angle0~30°0~30°
Swing set time0,30~150 times/min0,30~150 times/min
Curvature radiusR≥5mmR≥5mm
Total power3kW/380V4.8kW/380V
Size1460 x980 x 1760(mm)2000 x 1180 x 1750(mm)
WeightAbout 750kgAbout 1150kg

All machine can be designed   and manufactured as required.
