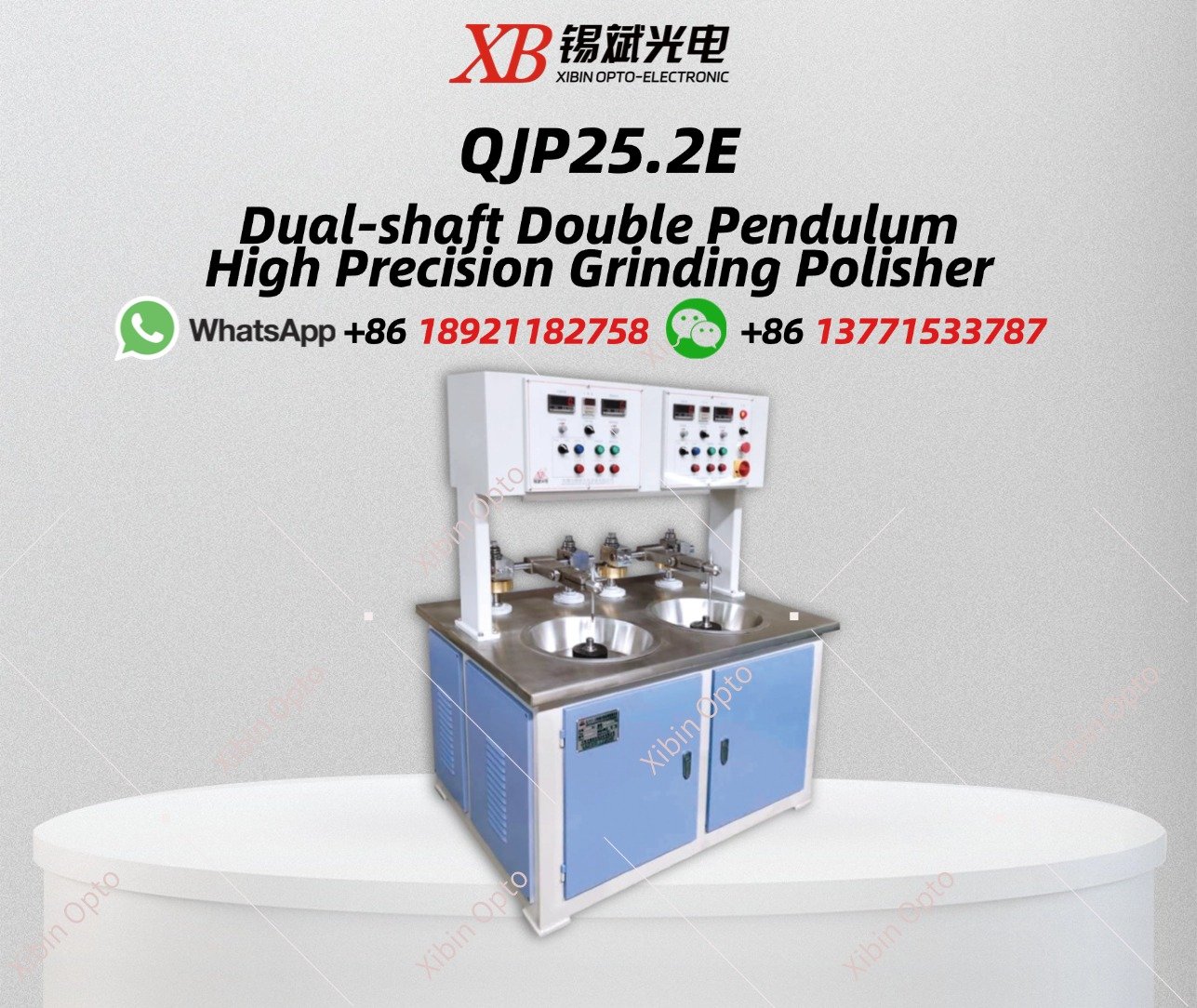

QJP25.2E Dual-shaft Double Pendulum High Precision Grinding Polisher
QJP25.2E Dual-shaft Double Pendulum High Precision Grinding Polisher

QJP25.2E Dual-shaft Double Pendulum High Precision Grinding Polisher

Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal.ceramics, silicon wafer, sapphire and so on.This equipment adopts the double pendulum disk to drive the pendulum swing, its spindle, pendulum shaft, speed and timecan be adjusted separately according to the needs of the machining parts. (Optional touch screen and knob for operation)
Chat Online Get Free Solution

Product details

QJP25.2E Dual-shaft Double Pendulum High Precision Grinding Polisher

Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal.ceramics, silicon wafer, sapphire and so on.This equipment adopts the double pendulum disk to drive the pendulum swing, its spindle, pendulum shaft, speed and timecan be adjusted separately according to the needs of the machining parts. (Optional touch screen and knob for operation)

Main technical specification

Product Model

QJP25.2E

Machining dia

Ф≤250mm

Tank dia

Ф420mm

Precision of main shaft

≤0.008mm

Double pendulum plate

Swing 0~200mm

Speed of main shaft0,10~50RPM
Swing set time0,10~50 times/min
Total power1.8kW/380V
Size1540 x 930 x 1700(mm)
WeightAbout 650kg

All machine can be designed   and manufactured as required.
