Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal ceramics, silicon wafer, sapphire and so on.
The spindle, pendulum shafi, speed, pressure and time can be adjusted separately according to the needs of machining parts. (Optional touch screen and knob for operation)

Chat Online Get Free Solution

Product details

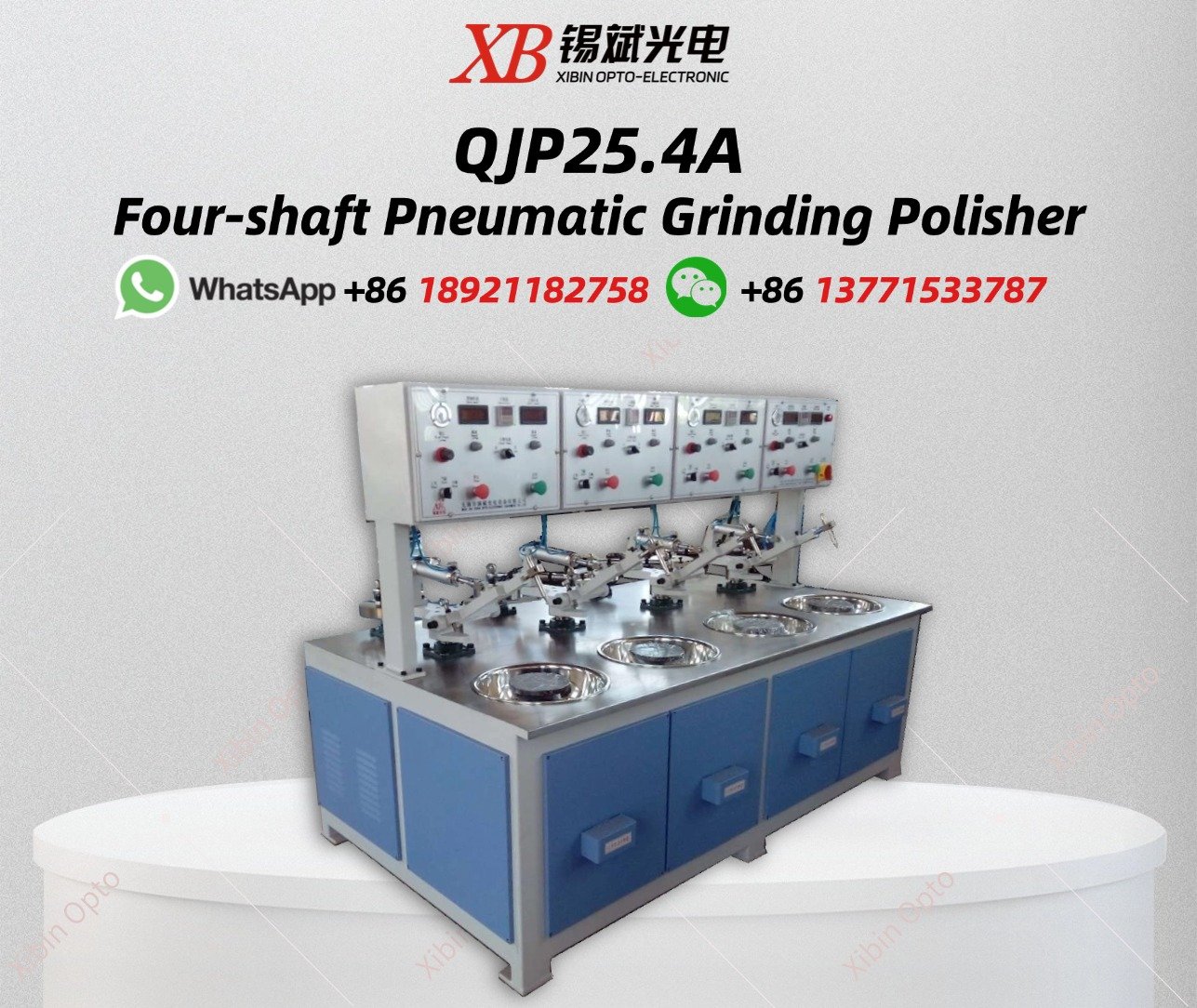

QJP25.4A Four-shaft Pneumatic Grinding Polisher

Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal ceramics, silicon wafer, sapphire and so on.

The spindle, pendulum shafi, speed, pressure and time can be adjusted separately according to the needs of machining parts. (Optional touch screen and knob for operation)

Main technical specification

Product Model	QJP25.4A
Machining dia	Ф≤250mm
Tank dia	Ф350mm
Precision of main shaft	≤0.002mm
Swing amplitude	Swing0~300mm
Speed of main shaft	0,24 ~ 120RPM
Swing set time	0,15~75 times/min
Amount of main shaft	Four shafts,Thread M27x3
Thimble head dia	Ф8mm
Pneumatic pressure	0.6Mpa
Total power	4.8kW/380V
Size	2140 x 1220 x 1600(mm)
Weight	About 1000kg
All machine can be designed and manufactured as required.
