Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal ceramics, silicon wafer, sapphire and so on.
The spindle, pendulum shaft, speed, pressure and time can be adjusted separately according to the needs of machining parts.(Optional touch screen and knob for operation)

Chat Online Get Free Solution

Product details

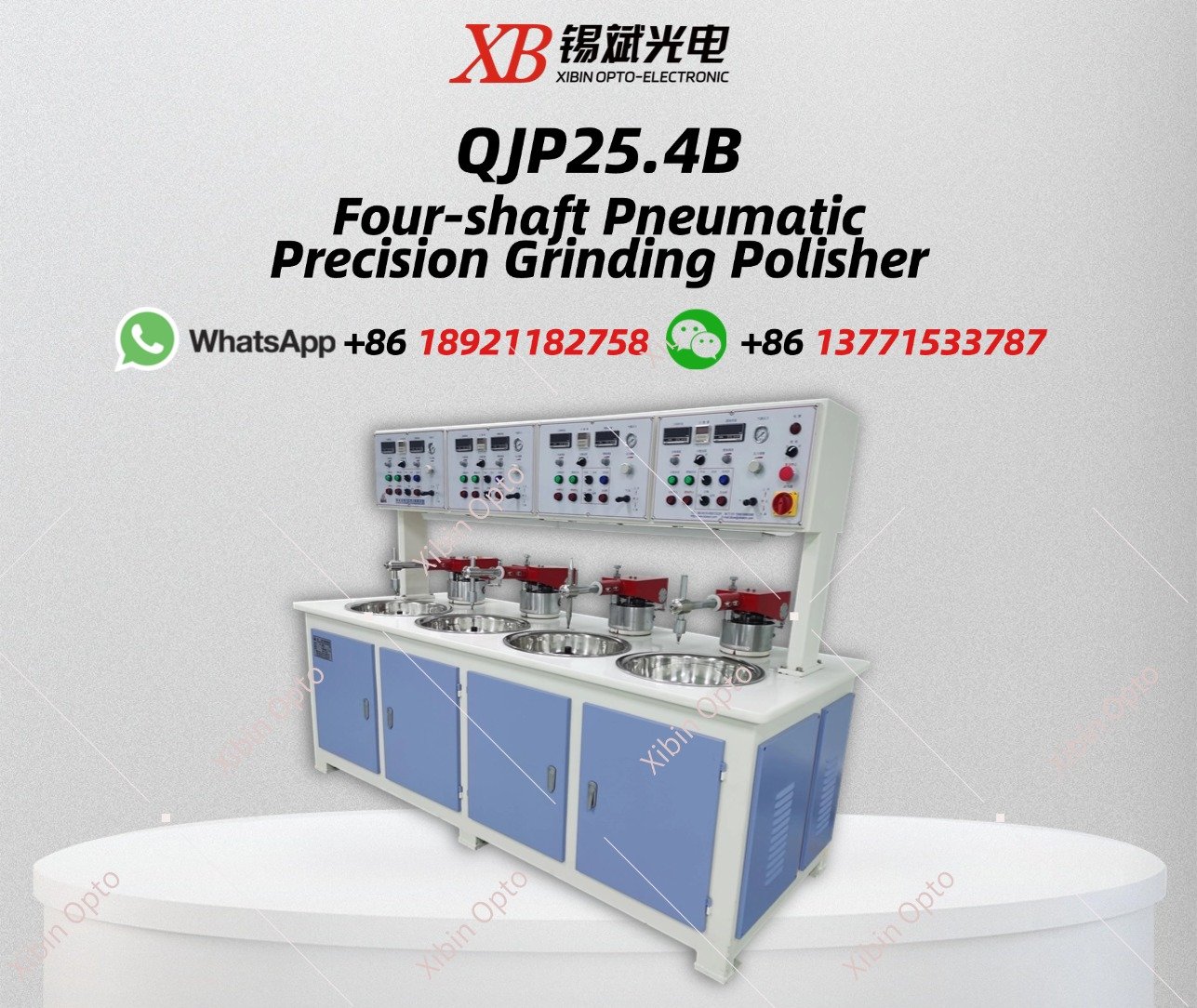

QJP25.4B Four-shaft Pneumatic Precision Grinding Polisher

Mainly used for precision grinding and polishing of planar and spherical components such as optical glass, quartz, crystal ceramics, silicon wafer, sapphire and so on.

The spindle, pendulum shaft, speed, pressure and time can be adjusted separately according to the needs of machining parts.(Optional touch screen and knob for operation)

Main technical specification

Product Model	QJP25.4B
Machining dia	Ф≤250mm
Tank dia	Ф420mm
Precision of main shaft	≤0.008mm
Swing amplitude	Swing 0~300mm
Speed of main shaft	0,40~ 200 RPM 0,10~50RPM
Swing set time	0,20 - 100times/min 0,10 ~ 50times/min
Amount of main shaft	Four shafts,Thread M27x3
Thimble head dia	Ф8mm
Pneumatic pressure	0.6Mpa
Total power	3.5kW/380V
Size	2350 x 930 x 1700(mm)
Weight	About 1200kg
All machine can be designed and manufactured as required.
